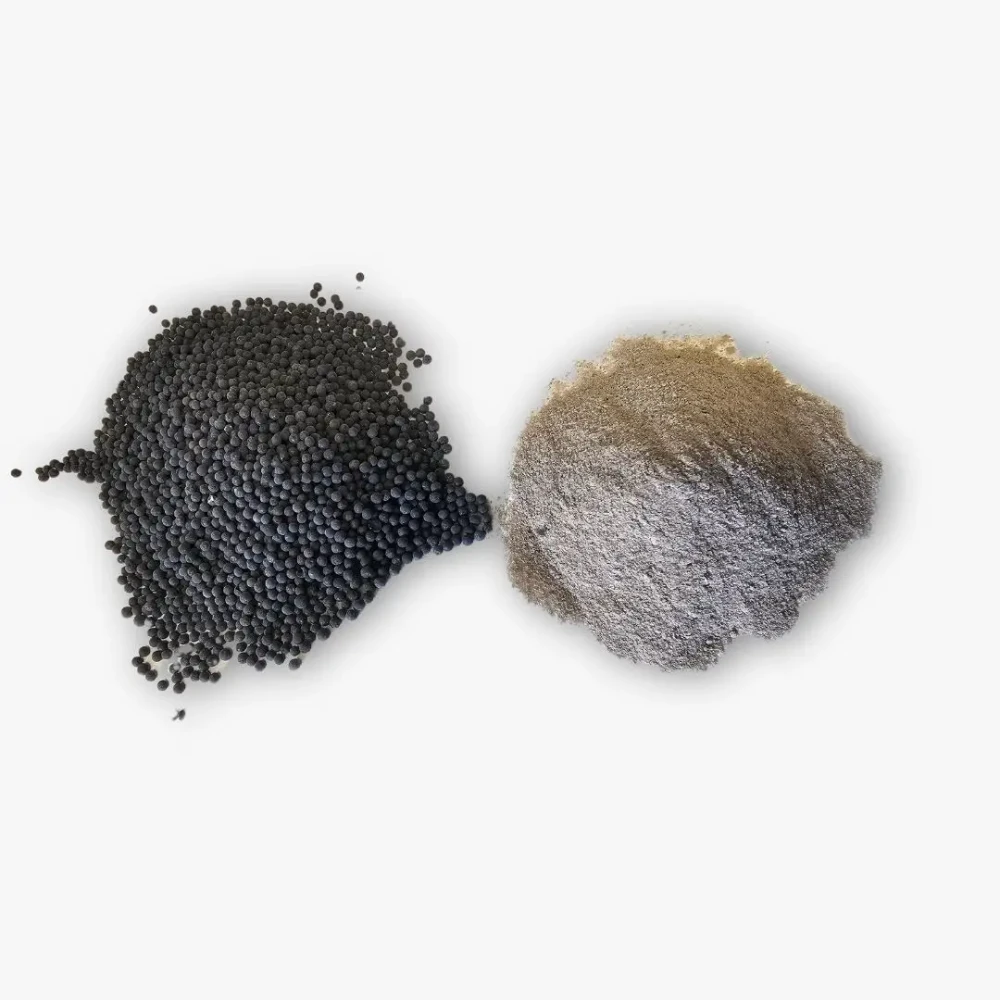

A VAM catalyst contains valuable precious metals like palladium and gold that can be identified and recovered for significant financial returns.
These catalysts, crucial for producing vinyl acetate monomer used in paints and adhesives, represent multi-million dollar assets for refiners and recyclers, making accurate testing and recovery essential.
What Is VAM Catalyst and How Does It Work?
Understanding the fundamental operation of a VAM catalyst requires examining both its chemical composition and physical structure. The sophisticated interplay between its components enables the efficient production of vinyl acetate monomer.
The Core Reaction and Component Cooperation
A VAM catalyst facilitates the gas-phase reaction where ethylene, acetic acid, and oxygen combine to create vinyl acetate and water without burning into carbon dioxide. The catalyst employs an architectural “shell” design where active metals are strategically positioned on the outer layer of a porous pellet to maximize gas contact.
Within this structure, palladium acts as the primary workhorse to bind molecules, gold serves as a spacer to prevent unwanted burning, potassium acetate functions as a liquid activator to accelerate the reaction, and the silica support suspends the metals for optimal interaction with the gases.
Step-by-Step Reaction Mechanism
The VAM catalyst process follows a precise five-step molecular sequence:
- Adsorption: Gases adhere to the metal surface
- Deprotonation: Acetic acid sheds a hydrogen atom
- Insertion (Samanos Pathway): Ethylene bridges the gap between components
- Beta-Hydride Elimination: The final VAM molecular shape is locked in
- Desorption: The newly formed VAM molecule releases from the catalyst surface, allowing the process to repeat immediately
The Value of Precious Metals in VAM Catalyst
The precious metals in a VAM catalyst represent substantial financial value due to high initial costs, operational efficiency benefits, and their non-consumable nature that enables nearly complete recovery.
Filling a single commercial reactor with a VAM catalyst requires millions of dollars in precious metals alone, with standard loadings of approximately 1 to 12 grams of palladium and 0.1 to 10 grams of gold per liter of catalyst support. Many companies strategically “lease” these metals from financial institutions to manage cash flow while maintaining production capabilities.
The operational value of these metals justifies their cost:
- Palladium directly determines the production rate of VAM, making it critical for output efficiency
- Gold prevents raw materials from converting to useless carbon dioxide, significantly reducing waste
Together, they create an optimized reaction environment that maximizes yield while minimizing byproducts
Importantly, these precious metals are never truly consumed in the reaction process. They simply degrade over time due to structural fouling or poisoning, meaning spent catalyst retains immense residual value.
Specialized refiners can achieve recovery rates of 99% or higher for both palladium and gold, which can then be purified into chemical salts and reused to manufacture brand-new VAM catalyst, creating a sustainable circular economy that minimizes the need for fresh mining.
Common Challenges in VAM Catalyst Analysis
Analyzing a VAM catalyst presents significant technical challenges due to dynamic alloy redistribution, leaching effects, volatile components, and carbon interference that render standard testing methods inadequate.
Under the high-temperature operating conditions, palladium and gold atoms migrate and restructure, creating analytical complexity. Standard laboratory techniques like X-ray diffraction often cannot distinguish between a fully mixed alloy and segregated metal nanoparticles, leading to potentially inaccurate valuations.
The highly corrosive acetic acid feedstock actually leaches palladium directly from the support structure over time. This minute, localized loss requires highly sensitive elemental tracking methods that exceed basic visual or standard laboratory assessments.
Additional analytical challenges include:
- Potassium volatility: The essential potassium acetate promoter is highly mobile and difficult to map with standard imaging tools
- Coke overlay: Side reactions leave a carbon layer over the active metals, acting like a cloak that blocks analytical beams
- False readings: Carbon layers mechanically hide precious metal active sites, causing traditional surface testing to provide an inaccurate picture of the catalyst’s remaining value
Comprehensive VAM Catalyst Solutions from Ledoux & Co.
Ledoux & Co. provides advanced analytical solutions for VAM catalyst testing that overcome standard limitations through ISO 17025 accredited methods, unmatched credentials, and on-site risk mitigation services.

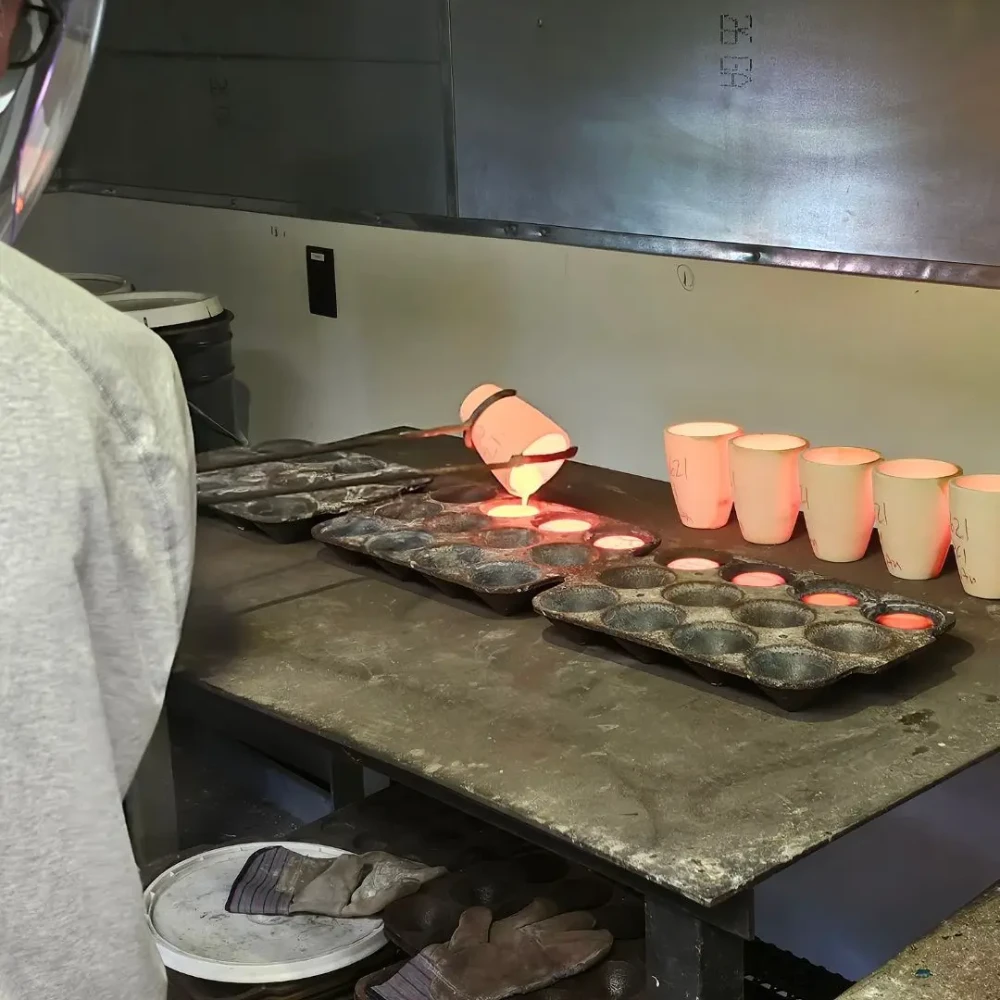

We do not rely on simple XRF or standard imaging that fails on spent catalysts. Instead, we employ advanced, ISO 17025 accredited methods, including Fire Assay, ICP-OES, and ICP-MS, to cut through carbon fouling and accurately determine trace amounts of palladium, gold, and other precious metals in your VAM catalyst.
Our credentials set us apart in the industry:
- ISO 17025 accredited independent laboratory
- ISO 9001:2015 certified for quality management
- Affiliate member of the LBMA/LPM
- Commercial-grade assays that provide trustworthy, legally defensible data for high-stakes financial transactions and refining contracts
We also offer on-site weighing and sampling representation services, serving as your “eyes and ears” during the entire process. Because a VAM catalyst contains millions of dollars in precious metals, processing them comes with significant risks including poor handling, theft, and loss.
Our experienced, on-site professionals strictly document every step of the process, thoroughly tracking Loss on Ignition (LOI) and Loss on Drying (LOD) conditions. This comprehensive oversight ensures your valuable material is treated with the same care as our own, effectively eliminating financial risk and providing complete peace of mind throughout the entire testing and recovery process.
Key Takeaways
A VAM catalyst holds immense, hidden value in their palladium and gold content, but complex structural challenges make standard testing unreliable. Accurate, ISO 17025 accredited elemental analysis is essential to ensure you receive the highest possible return during recycling or refining.
Partner with Ledoux & Co. to leverage our 145 years of unbiased, precise metallurgical testing and protect your financial interests. Contact our team today to discuss your VAM catalyst testing needs.
